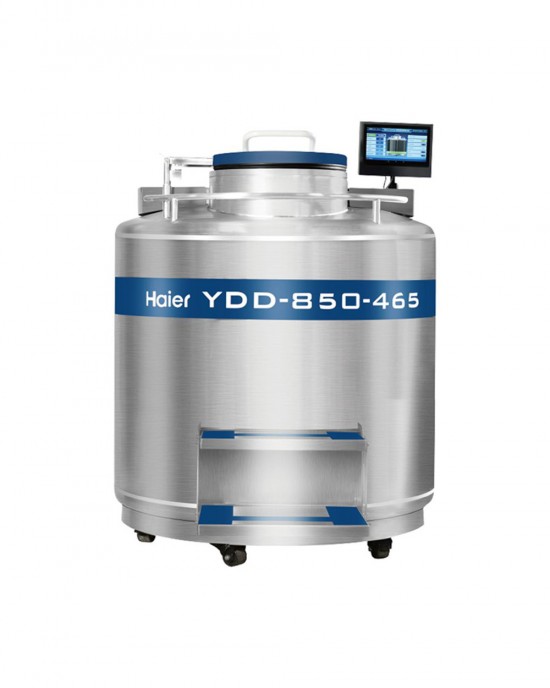

Liquid Nitrogen Container - Biobank Series (YDD Series) is designed for large-scale storage, maximizing capacity while minimizing liquid nitrogen consumption to reduce overall operating costs.
Brochure:
Liquid Nitrogen Container - Biobank Series [pdf]
Warranty: 2-year Parts and Labor; 5-Year on Vacuum
Product Features
|
Large scale storage capacities from 13,000 to 94,875 x standard 2ml cryovials. |
|
Vapour phase storage to prevent cross contamination |
|
Excellent temperature uniformity. |
|
One-touch defogging for easier access. |
|
Liquid nitrogen splash-proof feature provides safer operation. |
|
Can be used to store all kinds of biological sample. |
Specifications
| Catalog Number | YDD-850-465-ST |
| Accessories |
|
| Storage Capacity | |
| 2ml Vials (Internal Thread) | 42,900 |
| Freeze Racks (100 wells) | 32 |
| Freeze Rack (25 wells) | 4 |
| Layers of each Rack | 13 |
| 5mL Vials (Internal Thread) | 18,844 |
| Freeze Rack (81 wells) | 32 |
| Freeze Rack (25 wells) | 4 |
| Layers of each Rack | 7 |
| Volume of LN2 (L) | 890 |
| Volume of LN2 under the Tray (L) | 135 |
| Dimensions | |
| Inside Neck Diameter (mm) | 465 |
| Effective Internal Height (mm) | 773 |
| Height (mm) | 1,499 |
| Operating Height (mm) | 980 |
| Outside Diameter (mm) | 1,190 |
| Door Width Requirement (mm) | 1,210 |
| Empty Weight (kg) | 441 |
| Full Weight (kg) | 1,160 |
| Shipping Weight (kg) | 702 |
