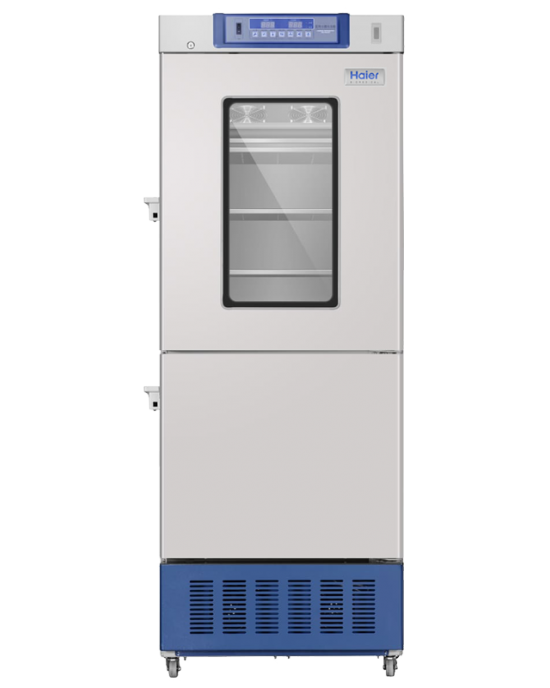

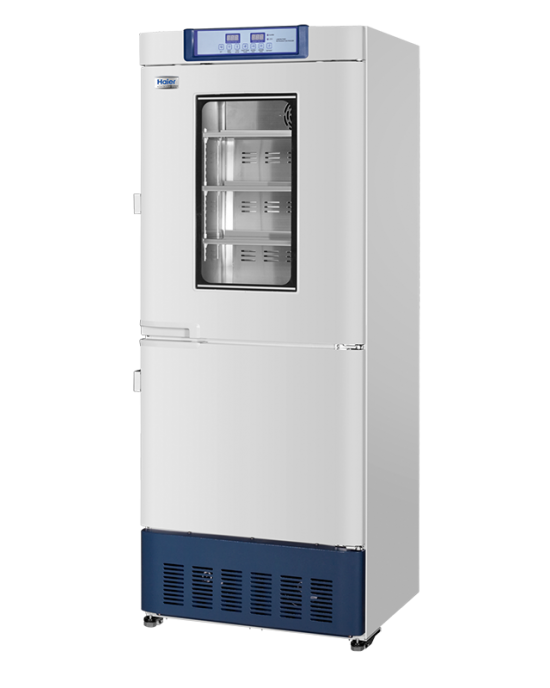

Pharmacy Combined Freezer (100L/3.53cf, 1 fixed shelf) and Refrigerator (200L/7.06cf, 3 adjustable shelves) (115V)

Secured Shopping

Best security features

Pharmacy Combined Freezer (100L/3.53cf, 1 fixed shelf) and Refrigerator (200L/7.06cf, 3 adjustable shelves) (115V)

Description

Haier Biomedical Combined Refrigerator (200L/7.06cf) and Freezer (100L/3.53cf) (Model: HYCD-319A) features a 200L (7.06cf) refrigerator compartment with a temperature range of 2°C to 8°C, and a 100L (3.53cf) freezer compartment with a temperature range of -10°C to -40°C.

Designed to store frozen plasma, biomaterials, vaccines, electronic devices and low temperature tests of special materials, in blood stations, hospitals, epidemic prevention stations, universities, scientific research institutes, electronic chemical industry and other enterprise laboratories.

Warranty: 3-Year Parts and Labor; 5-Year on Compressor Parts

Download Brochure [pdf]

Key Features

	Temperature Control Refrigerator temperature ranges from 2°C to 8°C. Freezer temperature ranges adjustable from -10°C to -40 °C. Microprocessor temperature control accuracy 0.1°C (refrigerator) and 1°C (freezer).
	Safety Separate doors for refrigerator and freezer with independent lock catches, dual padlocks available to ensure product safety. Multiple alarm functions including high or low temperature, sensor error, high ambient temp, power failure and remote alarm. Two types of alarm indications: audible buzzer and visible flashing light.
	Refrigerator System Refrigerator and freezer have independently controlled variable frequency refrigeration systems, standalone displays as well as separate on and off controls. Robust compressor system operating with environmentally friendly hydrocarbon refrigerant. Refrigerator with high quality and high efficiency cooling fan provides better temperature uniformity and stability.
	Ergonomic Design Large LED screen display for excellent user interface experience. USB port automatically saves temperature data for up to 10 years for convenient inquiry and record keeping. Optional printer to simultaneously print out temperatures of the refrigerator and the freezer. Four casters and two levelling legs design for ease of maneuvering.

Specifications

Technical Data
Model	HYCD-319A
Cabinet Type	Upright
Climate Class	N
Cooling Type	Refrigerator: Forced Air Cooling Freezer: Direct Cooling
Defrost Mode	Refrigerator: Auto Freezer: Manual
Refrigerant	Refrigerator: HC Freezer: HC
Sound Level (dB(A))	50
Performance
Temperature Range (°C)	Refrigerator: 2 ~ 8 Freezer: -15 ~ -40
Control
Controller	Microprocessor
Display	LED
Electrical Data
Power Supply (V/Hz)	115 / 60
Power (W)	450
Electrical Current (A)	6
Dimensions
Capacity (L/Cu.Ft)	Refrigerator: 200 / 7.06 Freezer: 100 / 3.53
Net/Gross Weight (approx)	145 ~ 160 kg (319.7 ~ 352.7 lbs)
Interior Dimension (WxDxH)	Refrigerator: 605 mm x 510 mm x 720 mm (23.8 in x 20 in x 28.3in) Freezer: 515 mm x 465 mm x 440 mm (20.2 in x 18.3 in x 17.3 in)
Exterior Dimension (WxDxH)	735 mm x 660 mm x 2820 mm (28.9 in x 26.0 in x 71.3in)
Packing Dimension (WxDxH)	795 mm x 740 mm x 2,010 mm (31.3 in x 29.1 in x 79.1 in)
Alarms
High/Low Temperature	Yes
Remote	Yes
Power Failure	Yes
Sensor Error	Yes
Low Battery	Yes
High Ambient Temperature	Yes
Door Ajar	Yes
Accessories
Castor	Yes/4
Foot	Yes/2
Porthole	Yes/2

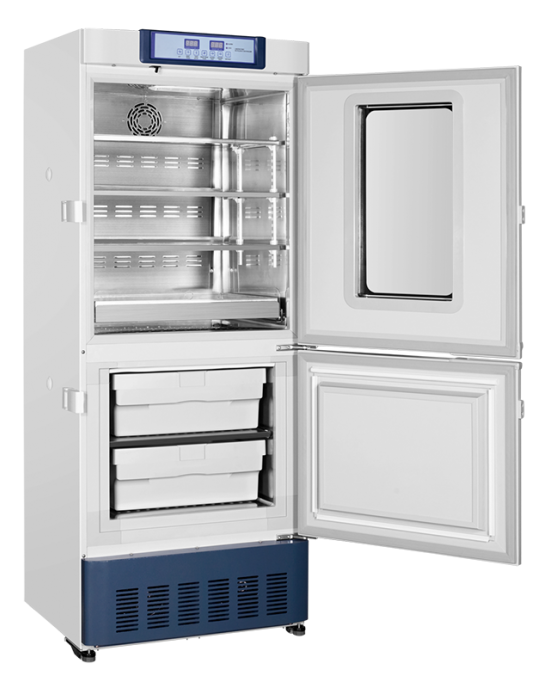

Shelves/Drawers	Refrigerator: 3/1 Freezer: 1 (For supporting the upper drawer) / 2 (without sliding rack)
USB Interface	Yes
Stylus printer/RS485	Optional (printer or RS 485, either-or)
Others
Certification	UL
