Smart Liquid Nitrogen Tank Laboratory Storage with Auto-Refill (175L, neck diameter 216mm)

Description

Haier Biomedical CyroBio 6S is a smart liquid nitrogen container with automatic refilling. It is designed to meet the mid to high-end biological sample storage needs of laboratories, hospitals, biobanks, and animal husbandry facilities.

This storage vessel minimizes both the need for manual filling and the risks associated with it. Typical applications include the storage of cord blood, stem cells, CAR-T cells, tissues, and other biomaterials in academic, pharmaceutical, and clinical laboratories. It accommodates up to 6,000 internally threaded 2 mL cryovials.

Warranty: 1 year parts warranty; 5 years vacuum warranty.

Download Brochure [pdf]

Key Features

	Automatic refilling It is equipped with an innovative automatic refilling system which reduces the risks associated with manual filling.

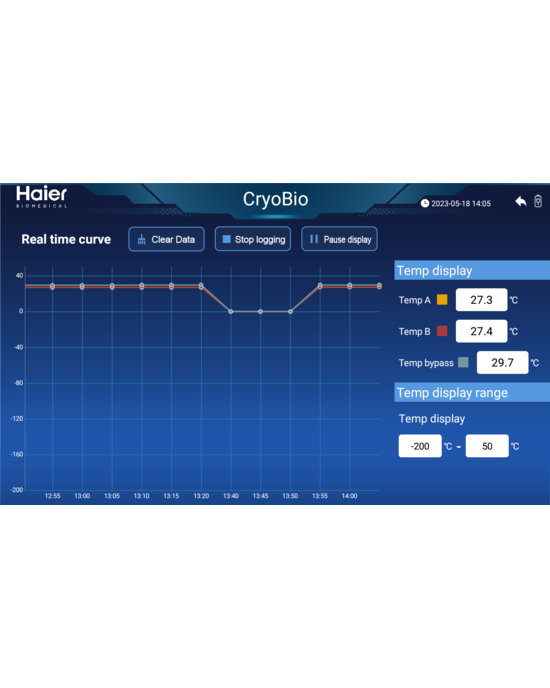

	Monitoring and Data Records It is equipped with a complete data recording system, temperature, liquid level, refilling and alarm records can be viewed at any time. It automatically stores data and download via USB.
	Low LN2 Consumption The multi-layer insulation technology and advanced vacuum technology ensures a low liquid nitrogen consumption and stable temperature.The top level of the storage racks keeps a temperature of -190℃ while the evaporation of working liquid nitrogen is only 1.5L.

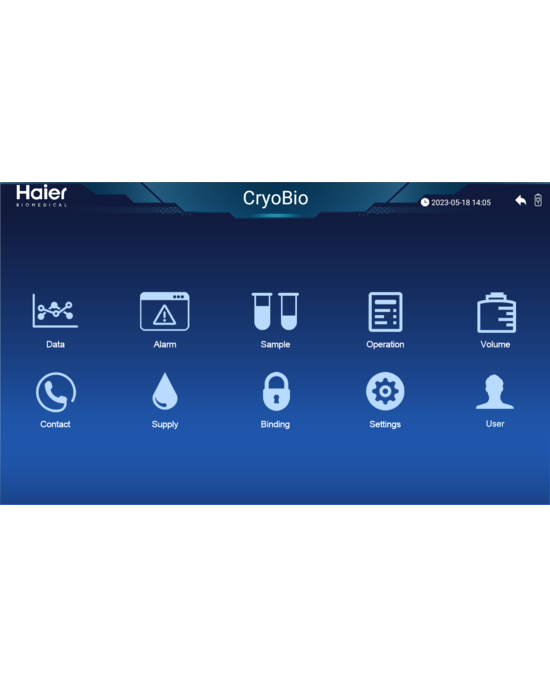

	Easy to Use - Smart and Interactive Touch screen controller is very sensitive to touch, even if you wear rubber gloves; Normal operating parameters are displayed in green and abnormal operating parameters are displayed in red, with clearly visible data; Users can set their own authorities, making management smarter.
	Use in Vapour or Liquid Phase Designed for both liquid and vapor phase storage.

Specifications

Model	CryoBio-6S
Volume of LN₂ (L)	175
Inside Neck Diameter (mm)	216
Height (mm)	1,490
Outside Diameter (mm)	681
Empty Weight (kg)	78
Working Evaporation (L/Day)	1.5
Static Evaporation (L/Day)	0.95
2mL Vials (Internal Thread)	6,000
Square Rack	6
Layer of Square Rack	10
