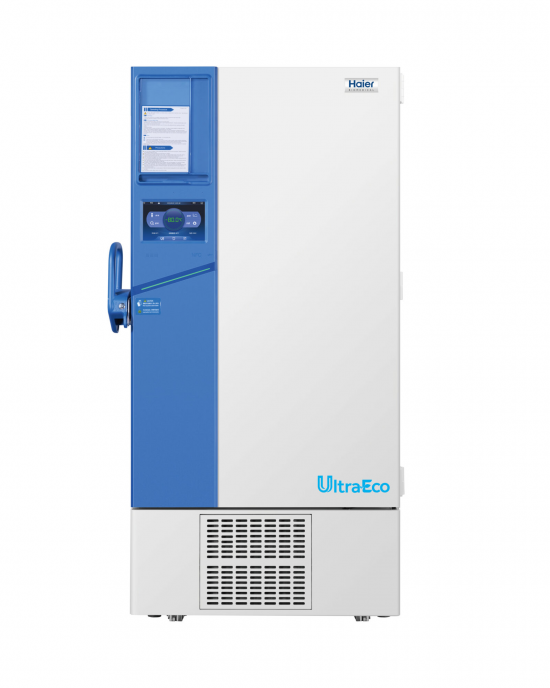

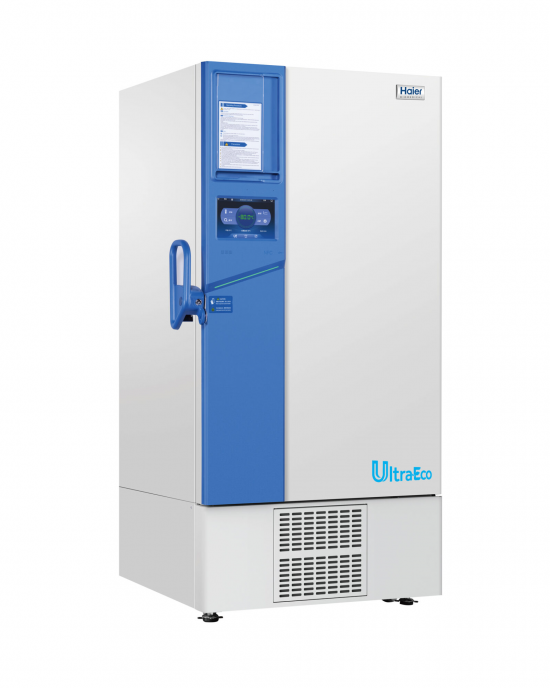

Haier Biomedical UltraEco ULT Series is ranked 1st in Energy Star Certification (Lab Grade Refrigerators and Freezers) (Check on the Energy Star Certification website). The ULT freezers of UltraEco series feature advanced energy-saving technology and precise temperature control, making it ideal for the long-term preservation of biological samples and other sensitive materials. By ensuring sample integrity and stability while significantly lowering electricity consumption, it delivers both reliable performance and environmental sustainability.
Warranty: 5-Year Parts and Labor; 10-Year on Compressor Parts
Download Brochure [pdf]
Key Features
|
Optimal Energy Efficient Performance
|
|
Green and Environmental Friendly
|
|
Dual Refrigeration System Double Safety and Optimal Reliability
|
Specifications
| Technical Data | |
| Model | DW-86L830BPT |
| Climate Class | N |
| Cooling Type | Direct Cooling |
| Defrost Mode | Manual |
| Refrigerant | HC |
| Sound Level (dB(A)) | ≤ 46 |
| Performance | |
| Cooling Performance (°C) | -86 |
| Temperature Range (°C) | -40 ~ -86 |
| Temperature Uniformity (°C) | +- 3°C |
| Control | |
| Control | Microprocessor |
| Display | Touchscreen LCD |
| Electrical Data | |
| Power Supply (V/Hz) | 100-230 / 50 / 60Hz |
| Max Power (W) | 1,050 |
| Dimensions | |
| Capacity (L/Cu.Ft) | 830 / 29.3 |
| Net/Gross Weight (approx) |
336 ~ 390 kg (740.8 ~ 859.8 lbs) |
| Interior Dimension (WxDxH) | 34.3 in x 28.2 in x 51.6 in |
| Exterior Dimension (WxDxH) | 45.1 in x 39.3 in x 77.6 in |
| Packing Dimension (WxDxH) | 48.0 in x 45.3 in x 85.0 in |
| Alarms | |
| High/Low Temperature Alarm | Yes |
| High Condenser Alarm | Yes |
| Power Failure Alarm | Yes |
| High/Low Voltage Alarm | Yes |
| Sensor Error Alarm | Yes |
| Low Battery Alarm | Yes |
| High Ambient Temperature Alarm | Yes |
| Door Ajar Alarm | Yes |
| Start-up Delay | Yes |
| Accessories | |
| Castor | Yes (4) |
| Leveling Feet | Yes (2) |
| Porthole | 2 Rear, (15mm) Diameter |
| Inner Doors | 4 |
| Shelves | 3-Stainless Steel Adjustable Shelves |
| Shelf Dimensions (WxD) (mm) | 856 x 650 |
| Max. Load per Shelf (kg) | 108 |
| Freezer Racks Qty (2" boxes) | 24 |
| Capacity (2" boxes) | 600 |
| USB Interface | Yes |
| Remote alarms | Yes |
| 5V Power Supply Port | Yes |
| Temprature Recorder | Optional |
| RS232 / 485 Port | NA / Standard |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Others | |
| Certification | CE, UL, Energy Star |
