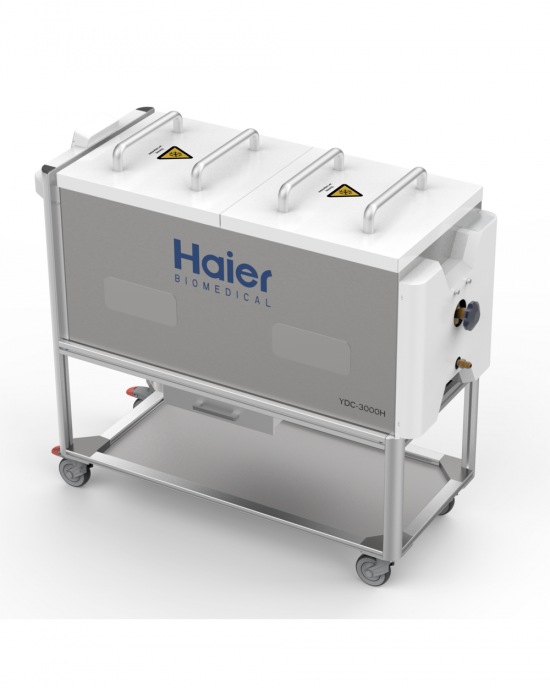

CryoStation Mobile Vapour Storage Trolley (Model: YDC-3000H) is designed for the safe preservation and transport of plasma and biological materials under cryogenic conditions. It is ideal for deep low-temperature handling and sample transportation in hospitals, biobanks, and research laboratories. Constructed with high-quality stainless steel and an advanced thermal insulation layer, the trolley ensures reliable temperature performance, durability, and long-term use.
Brochure:
CryoStation Mobile Vapour Storage Trolley [pdf]
Warranty: 1-year Parts and Labor; 5-Year on Vacuum
Product Features
|
Touch Screen: LCD, touch operation. |
|
USB Data Export The unit has a built-in USB interface that supports data export. |
|
Real Time Monitoring The instrument monitors the temperature and liquid level in real time and displays the expected remaining service time (liquid nitrogen levels). |
Specifications
| Catalog Number | YDC-3000H |
| Accessories |
|
| Storage Capacity | |
| 5x5 Freezing Boxes | 65 |
| 10x10 Freezing Boxes | 30 |
| 50mL Blood Bag Boxes | 105 |
| 200mL Blood Bag Boxes | 50 |
| 2mL Cryopreservation Tubes | 50 |
| Dimensions | |
| Exterior Dimensions (LxWxH) | 1,295 x 523 x 1,095 mm |
| Frozen Storage Space (LxWxH) | 900 x 335 x 163 mm |
| Shelf Space (LxWxH) | 950 x 440 x 220 mm |
| Liquid Nitrogen Under Tray | 33 L |
| Empty Weight | 150 kg |
