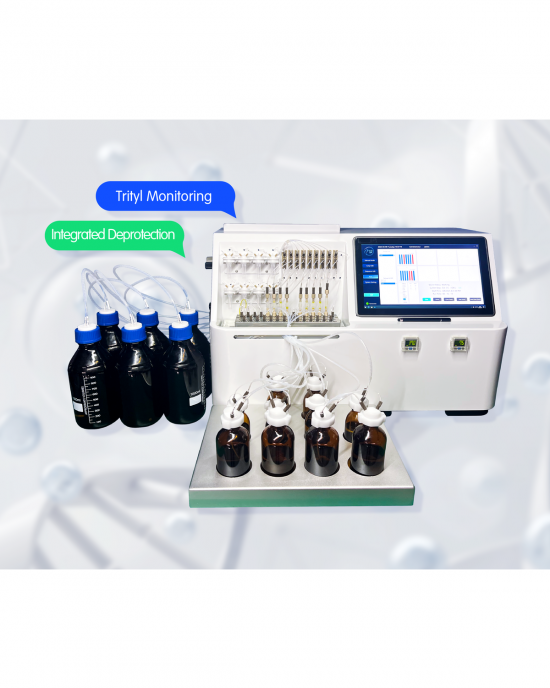

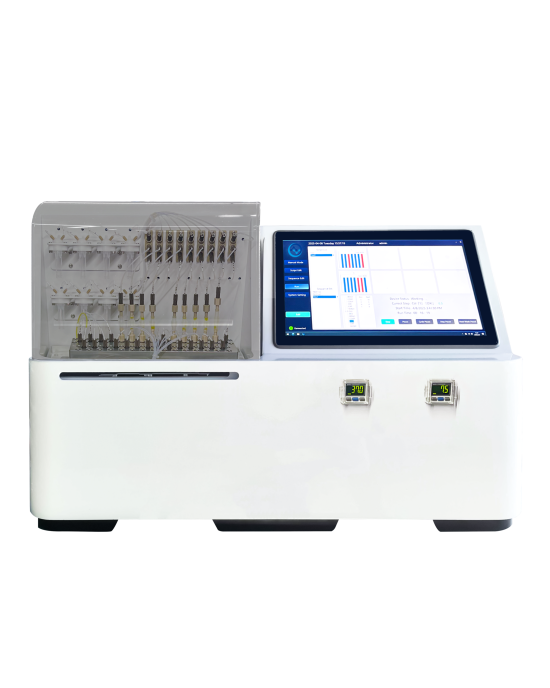

HY-15 DNA/RNA oligo synthesizer

Introduction

The HY-15 DNA/RNA Oligo Synthesizer is a high-performance instrument designed for efficient and flexible DNA and RNA synthesis. Featuring eight independent synthesis columns, the HY-15 allows users to pause individual columns during the synthesis process and selectively cancel or add synthesis as needed.

With versatile amidite and reagent bottle configurations, the system supports both universal and standard CPGs and offers a variable synthesis scale of up to 10 µmol. Optional online trityl monitoring is available for all columns, ensuring precise, high-fidelity synthesis.

Fully programmable, the HY-15 supports mixed-base synthesis and automated antisense oligonucleotide synthesis, delivering simultaneous, short-cycle operation across all columns with minimal reagent consumption. Compact and user-friendly, it is optimized for the synthesis of long-chain, high-purity oligonucleotides, making it ideal for modern laboratory environments.

Self-Attestation Notice

Apostle Inc attests to full compliance with the U.S. Framework for Nucleic Acid Synthesis Screening. We are committed to upholding the highest standards of ethical conduct and regulatory adherence in all our operations. If this information should change, this attestation will be updated within 72 hours. For more information, please contact us at support@apostlebio.com.

Full statement [pdf]

Specifications

Catalog #

HY-15

Synthesis Channel

2, 4, 8

Synthesis Scale

50nmol - 10umol

Amidite Position

4 - 10

Reagent Position

7

Cycle Time

4 - 6 minutes

Coupling Rate

≥ 99%

Purge Control

Positive Pressure by Protective Gas

Working Temperature

20-25°C

Power Supply

110 - 230V, 50 - 60Hz

Optional Functions

Trityl monitor, sample collection, deprotection at room temperature

Equipment Dimension
(L x W x H)

755mm x 385mm x 460mm

Product Type

DNA, RNA, LNA, Probes, etc

Warranty

1 Year after installation

Training

Up to 3-day training
