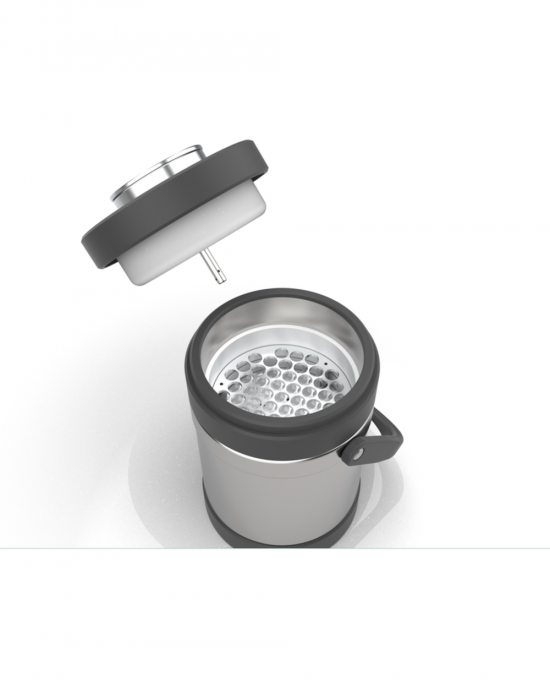

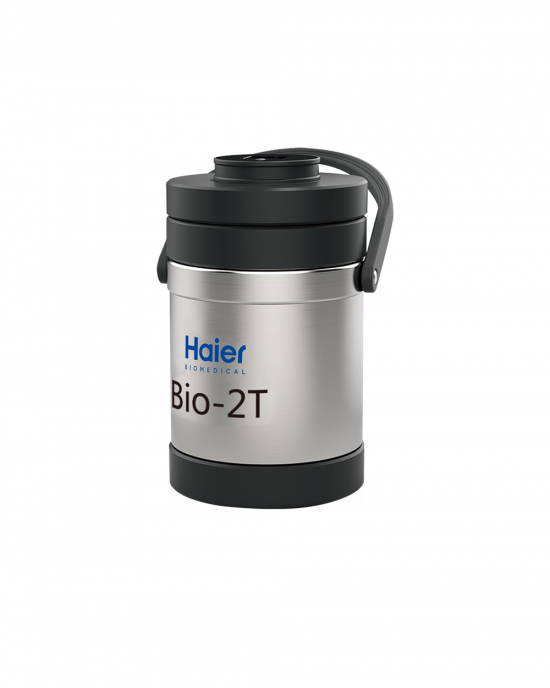

Portable Cryogenic Transport Tank (Model: Bio-2T) can store up to 54 × 2 mL cryovials and is equipped with a temperature display for real-time monitoring. An optional data reader enables export of temperature records. A data repeater is also available for connection to the Haier platform, allowing remote alarm setup and data storage.
The Bio-2T is ideal for small-batch, short-distance transport of biological samples in laboratories and hospitals.
Brochure:
Bio-2T [pdf]
Product Features
|
Lightweight The total empty weight is only 3 kg (6.6 lbs). |
|

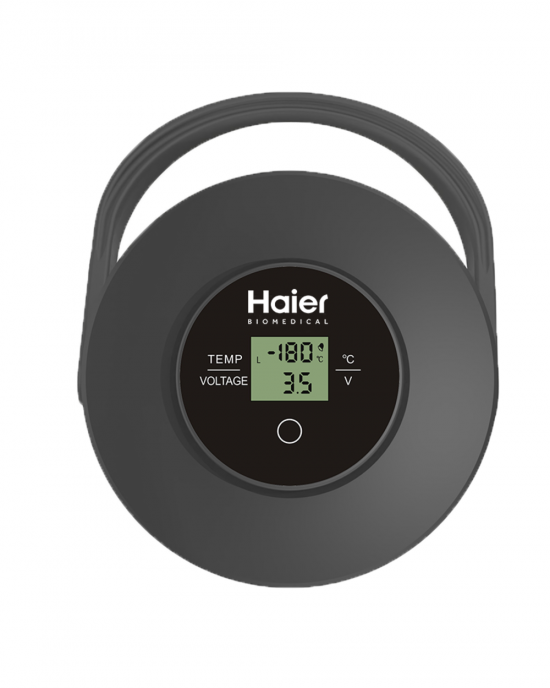

Temperature Display Real-time visual monitoring of temperature, dust-proof and waterproof display. |
|
Compatible with Multiple Specifications Compatible with 1.2 ml, 1.5 ml, 1.8 ml, 2.0 ml, 5.0 ml cryogenic tubes |
|
High Performance Heat Insulation Thickend insulation material to ensure the working temperature in the tank is stable between -135°C ~ 196°C, excellent thermal insulation performance. |
Specifications
| Catalog Number | Bio-2T |
| Outside Diameter | 156 mm |
| Inside Neck Diameter | 125 mm |
| Depth | 190 mm |
| Height | 265 mm |
| Empty Weight | 3 Kg (6.6 lbs) |
| Volume of LN2 | 2 L |
| Time of Storage in Liquid Phase | 8 Hours |
| Time of Storage in Vapor Phase | 6 Hours |
| 2ml Vials (Internal Thread) | 54 |
| Temperature Range | -196 ~ -135°C |
| Ambient Temperature | -20 ~ 40°C |
| Temperature Display | Yes |
